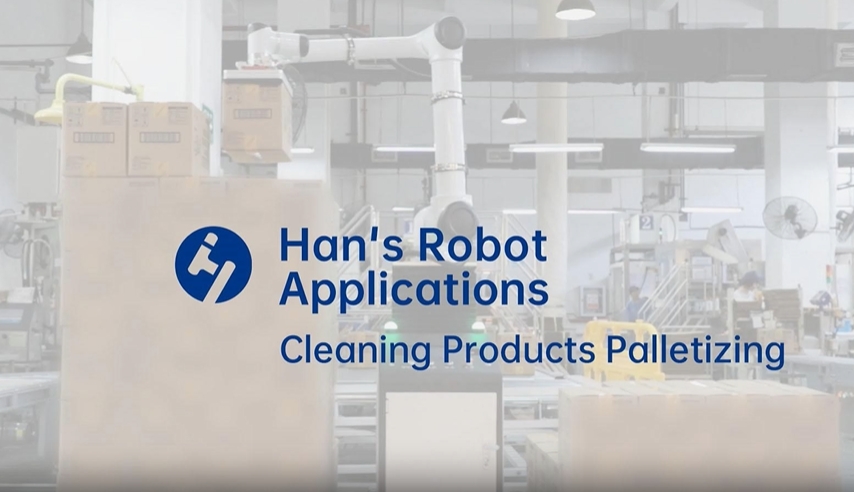

In the fields of food and beverage, logistics and warehousing, pharmaceuticals, and chemicals, there is a substantial demand for palletizing and handling tasks. Using the Han's Robot S Heavy Payload Robot to construct a one-stop palletizing workstation offers advantages such as rapid deployment, ease of use, high efficiency, and low cost. This assists in relieving humans from highly intense and repetitive tasks, thereby facilitating cost reduction, efficiency improvement, and automation upgrade of production lines for enterprises.

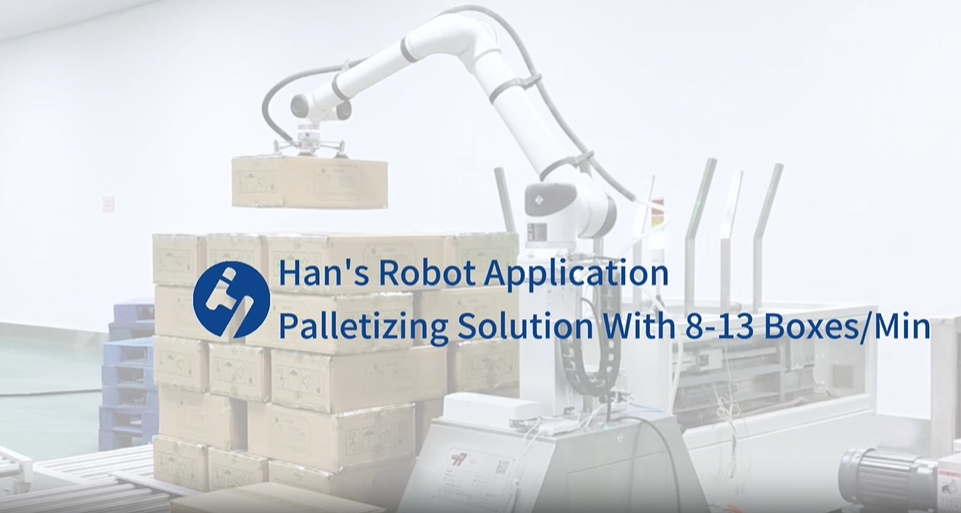

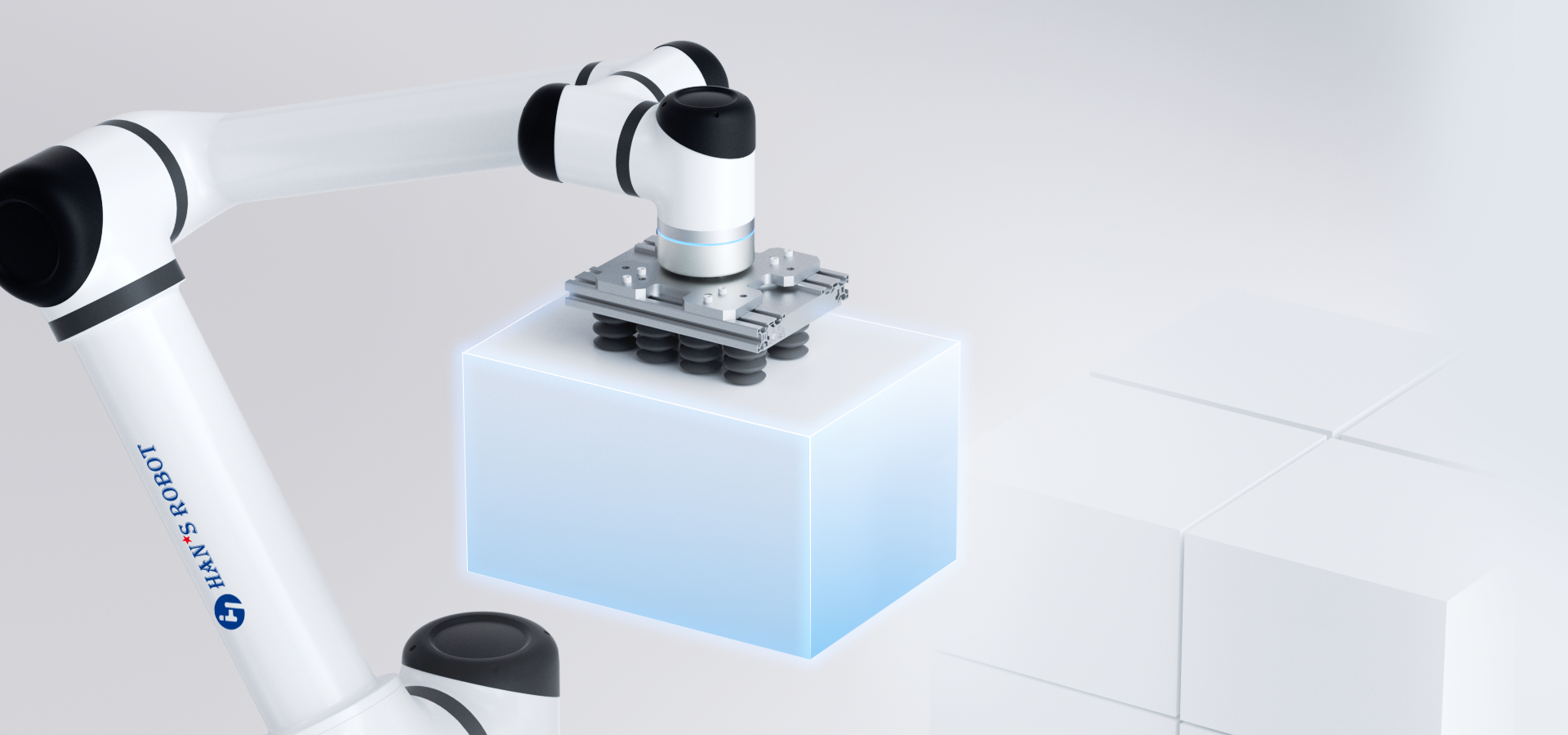

Palletizing cycle reaches 8-13 cycles per minute. Single-suction palletizing rate achieves 13 boxes (items) per minute, while dual-suction achieves up to 24 boxes (items) per minute. Support 24 hours a day continuous operation. Compared to similar products, it can reduce time for the same task by 38%.

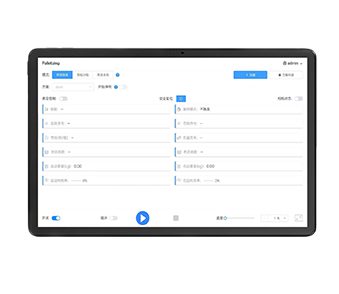

With Han's Robot self-developed palletizing process package,
it adopts a graphical operation interface, which has extremely
low learning cost and can be used without demonstration.
| Dual-lines Palletizing | Up to 2.2 Meters | Automatic Switch Mode | One-touch Function | Real-time Data Statistics |
| Dual-purpose Palletizing Saveing Costs | Support Customizable Palletizing Configurations | Enhances Flexibility and Efficiency | 13 Cycles/Min at Maximum Speed | Visible Efficiency Tracking |

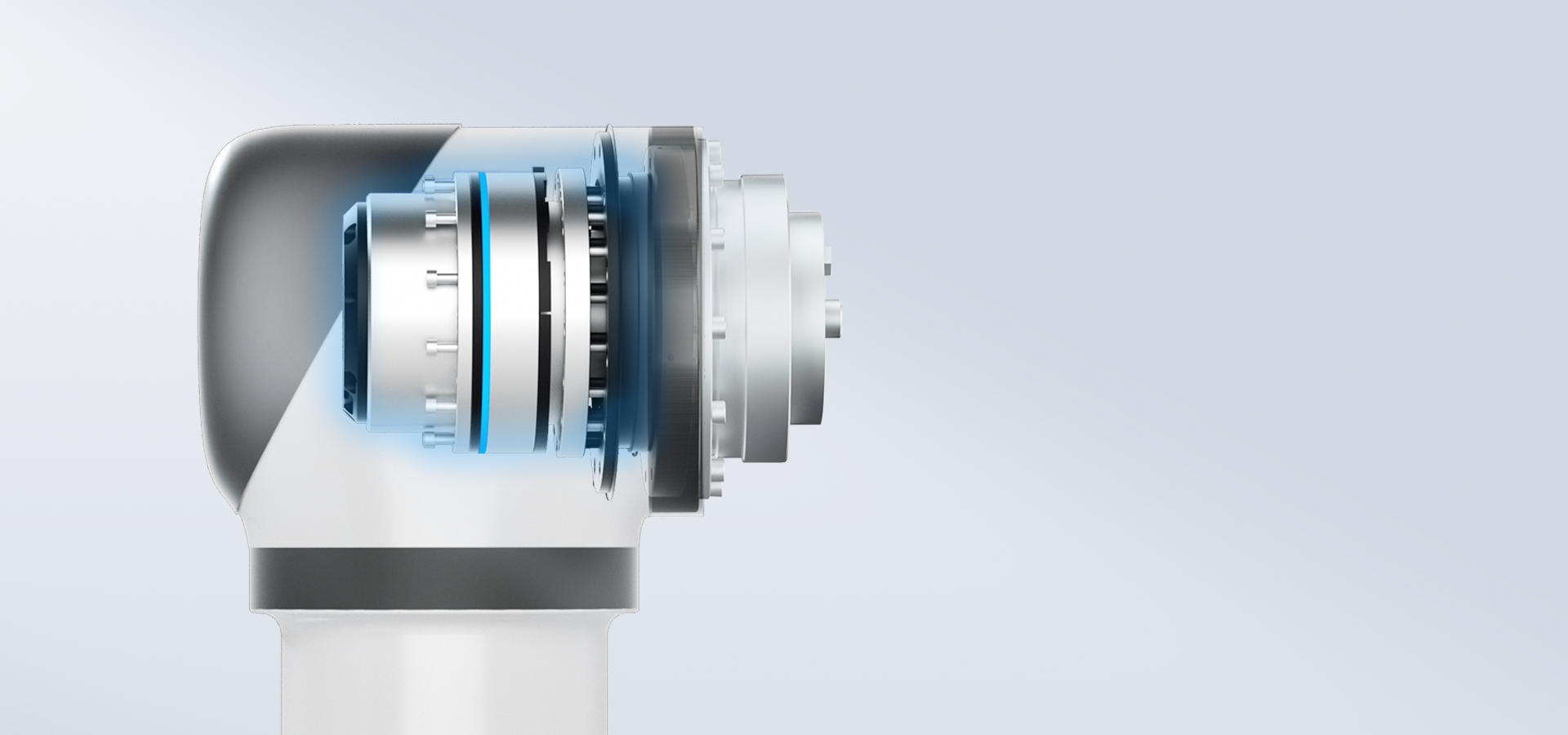

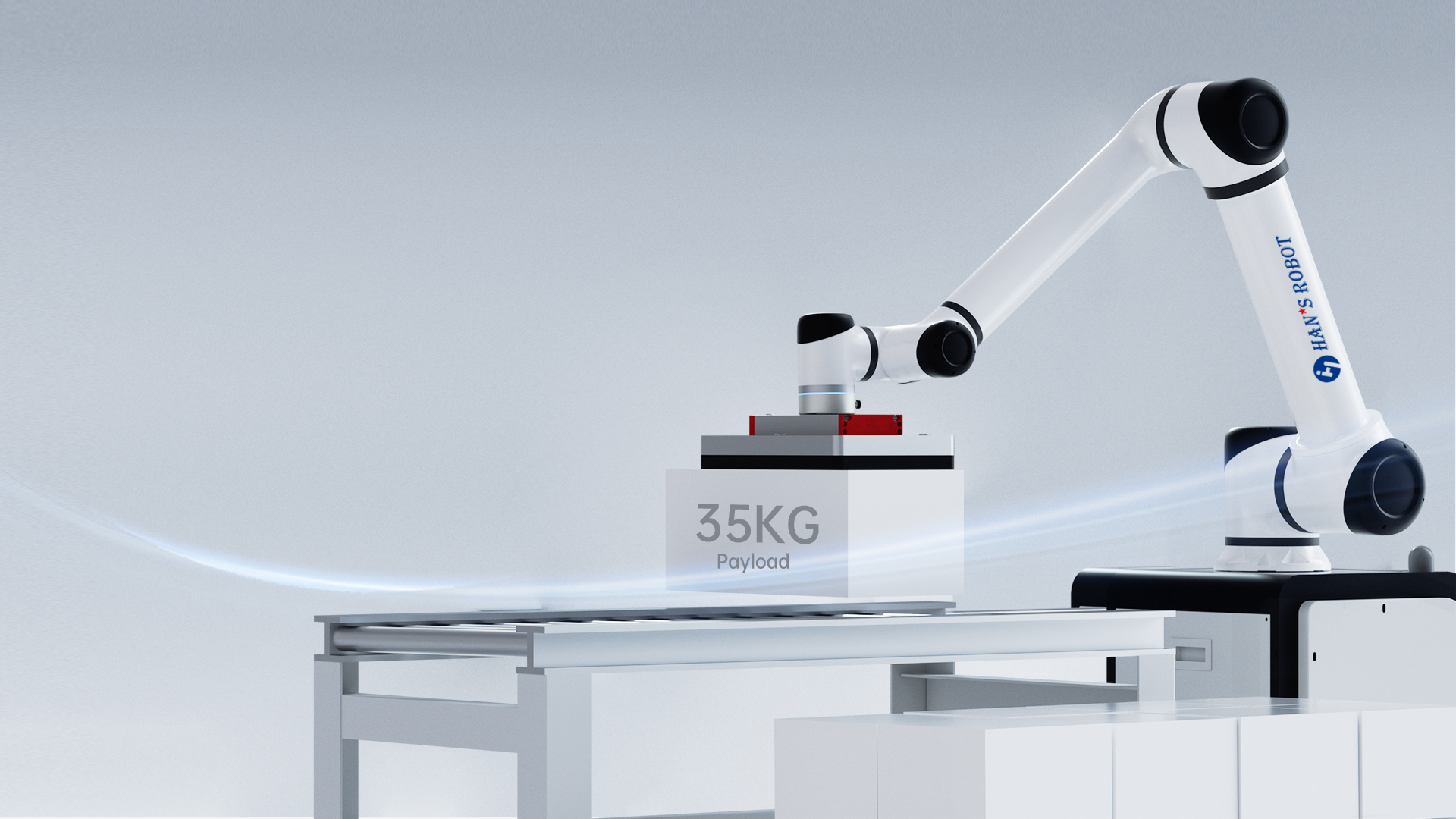

Using self-developed high-performance motors, its capable of withstanding 2.5 times the impact load. The overall performance rivals industrial robots. Particularly suitable for heavy payload palletizing applications.

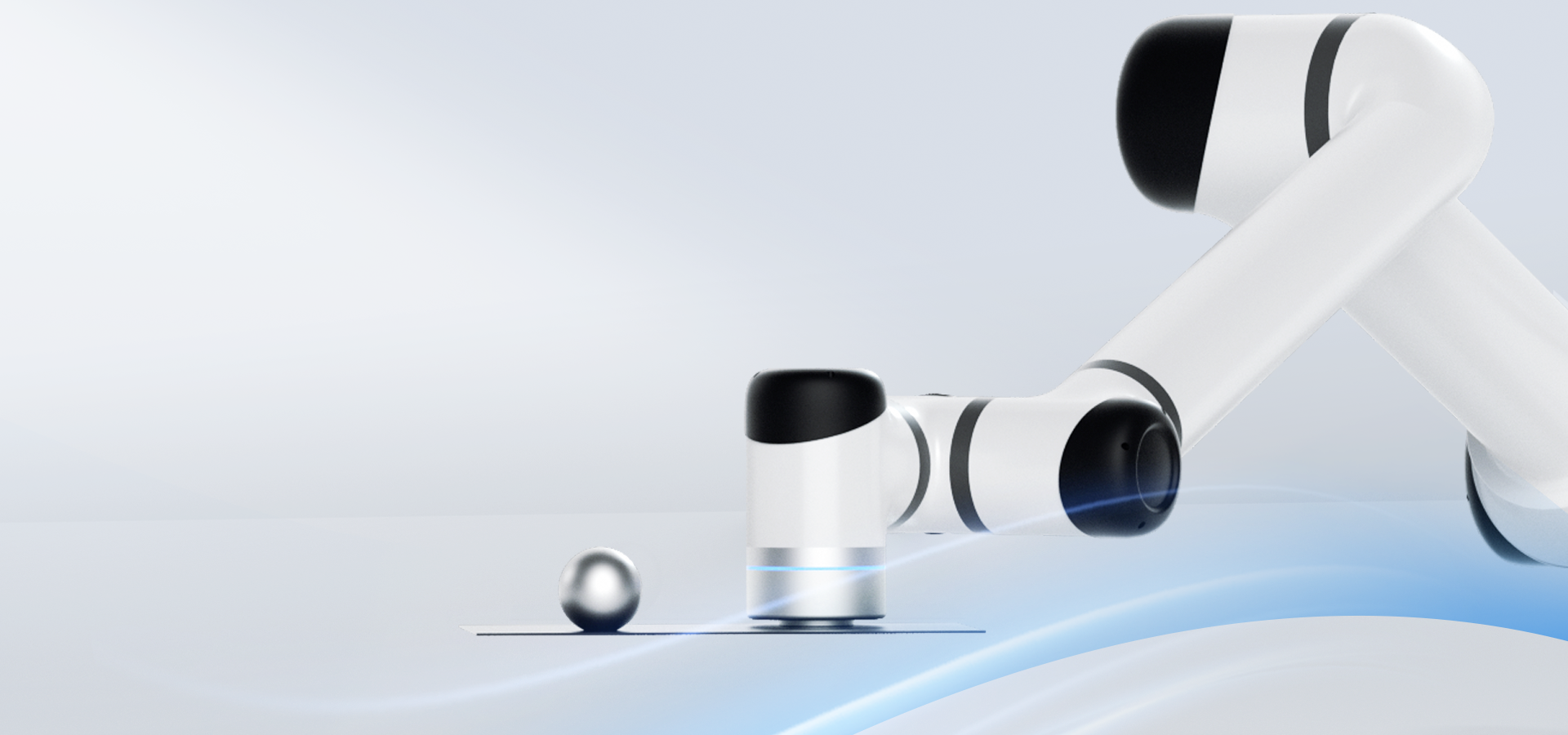

Based on advanced vibration suppression algorithms, it runs smoothly at full load and speed, with reduced jitter and higher precision. It also incorporates 10 advanced safety configurations for enhanced operational safety.

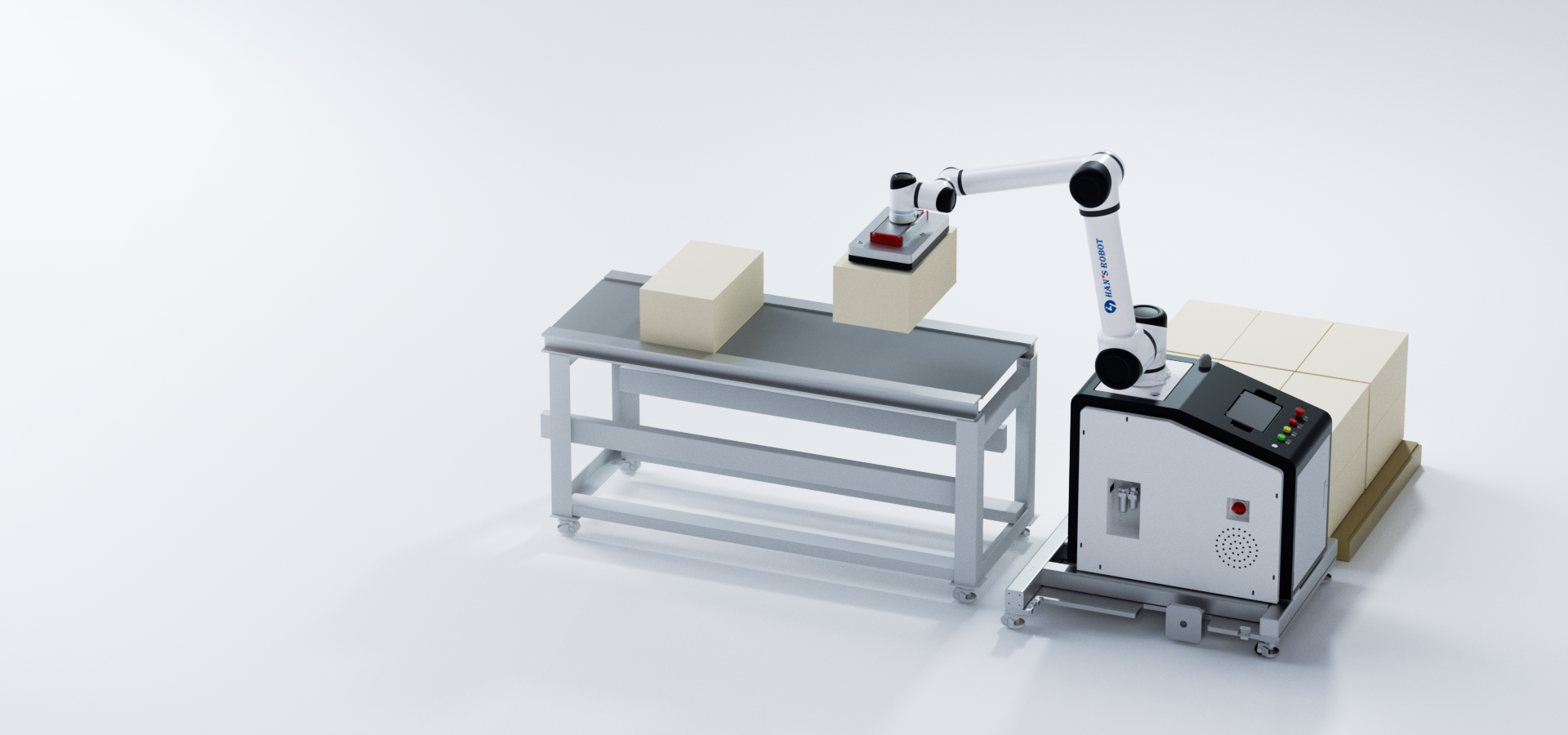

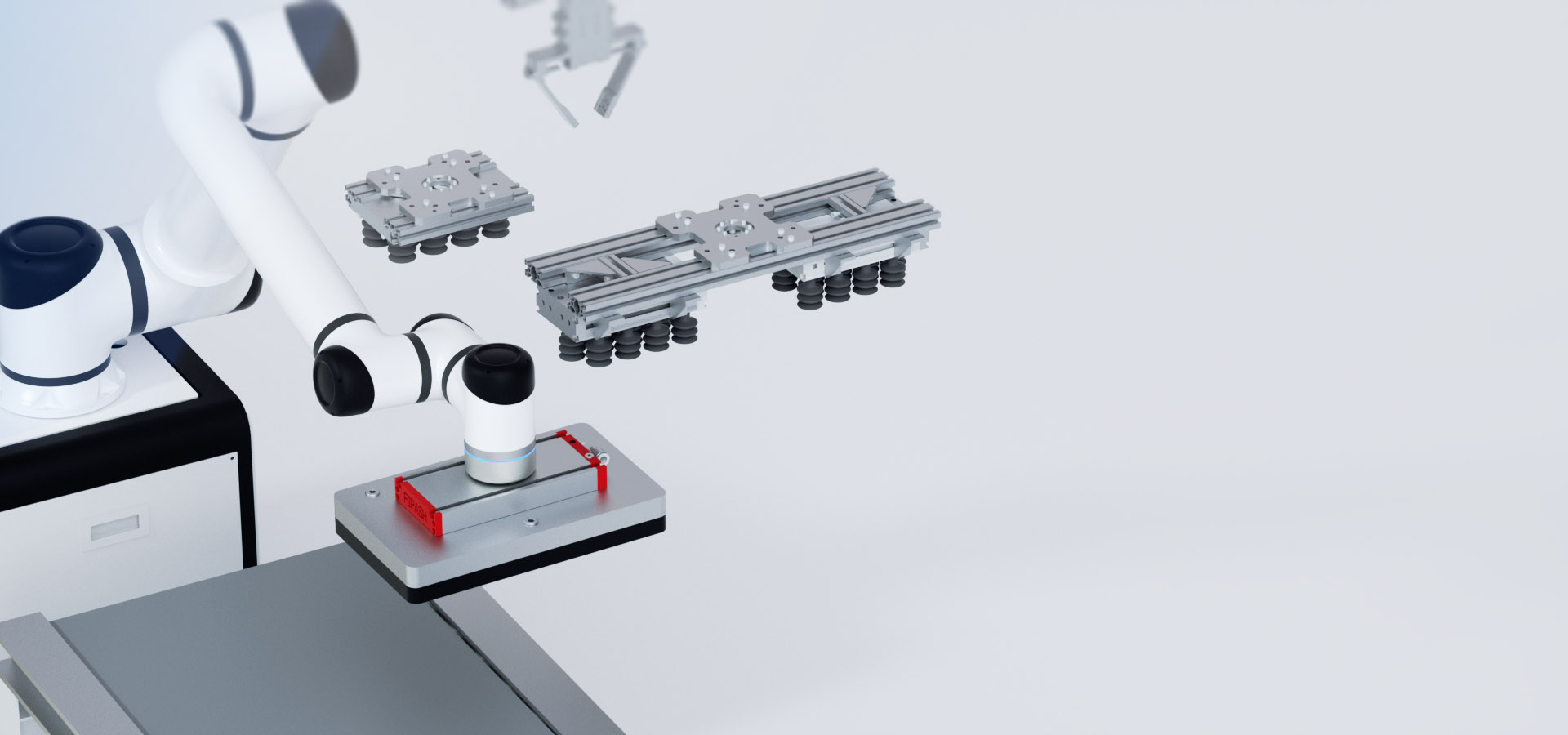

Easily integrates with palletizing vehicles and conveyor equipment, allowing quick connections. Users can conveniently choose and interchange fixtures, suction cups, seventh axes, and other peripheral devices as needed.

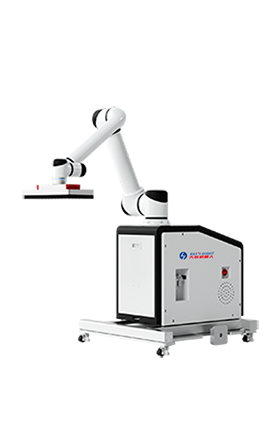

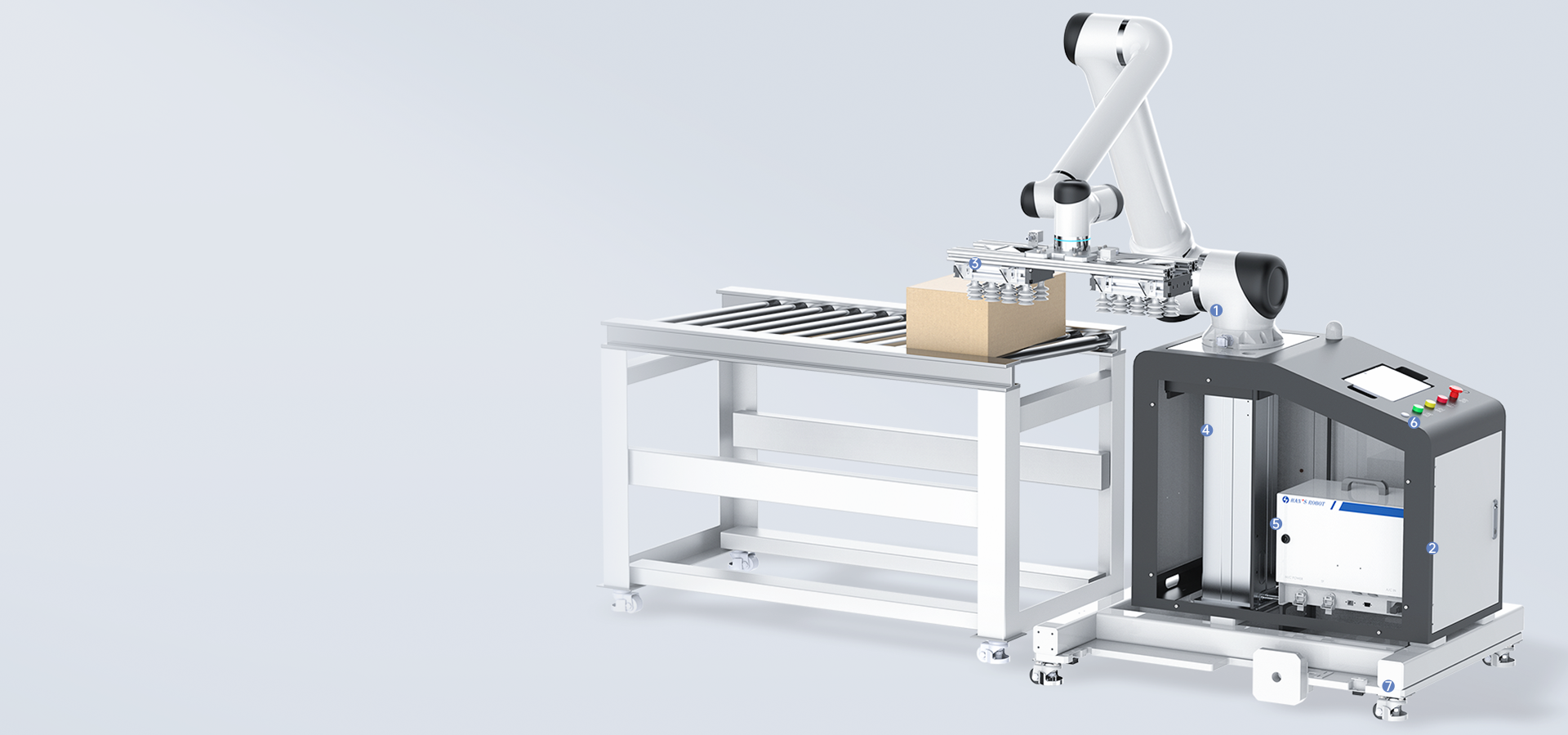

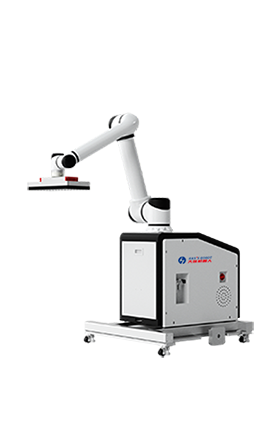

| 1Collaborative robots(S20,S30,S35) | 5Electrical control box |
| 2Integrated chassis | 6Teach pendant(handheld) |
| 3End grippers | 7Load-bearing movable base |
| 4Lifting column assembly/fixed assembly | |
Han's Robot offers comprehensive support including hardware, software, and components. We collaborate closely with domestic and international palletizing integrators and partners, aiming for mutual development and success.
 |
 |
 |
 |
| Workstation Model | RP-ST-S20 | RP-ST-S30 | |
| Robot Arm Payload | 20kg | 30kg | 35kg |
| Working Radius | 1700mm | 1800mm | 1650mm |
| Palletizing Height (without lifting column) | 1600mm | 1650mm | 1600mm |
| Palletizing Height (with lifting column) | 2200mm | 2200mm | 2100mm |
| Maximum Pallet Size | 1200*1200mm | 1200*1200mm | 1200*1200mm |
| Palletizing Cycle (cycles per minute) | 8~10cycles/min | 8~13cycles/min | 8~10cycles/min |
| Total Power Consumption | 2000W | 3750W | 3750W |
| Palletizing Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Communication Support | TCP/IP and Modbus | ||
| Workstation Weight (±10kg) | 510kg+68kg | 510kg+110kg | 510kg+90kg |
| Temperature Range | 0-55°C | ||
| Footprint Area (entire station, excluding pallet) | 1200*1100mm | ||
| Ceiling Height Requirement | Pallet height+800mm | ||
| Rated Voltage | 110-220V | ||
| Compatible Size (standard suction cup) | 130~1200*80~1200*100*1200mm | ||
| Compatible Surfaces | Regular cardboard surfaces, smooth surfaces, metal surfaces | ||
| Teach Pendant | |
|---|---|
| Size | 263.33×166.67×6.8mm |
| Weight | 480g |
| Screen Size | 11.2 inches |
| Screen Size Range | 10 inches and above |
| Resolution | 2560×1536 |
| Screen Description | TÜV Rheinland Hardware Low Blue Light Certification |
| Shell material | Metal Material |
